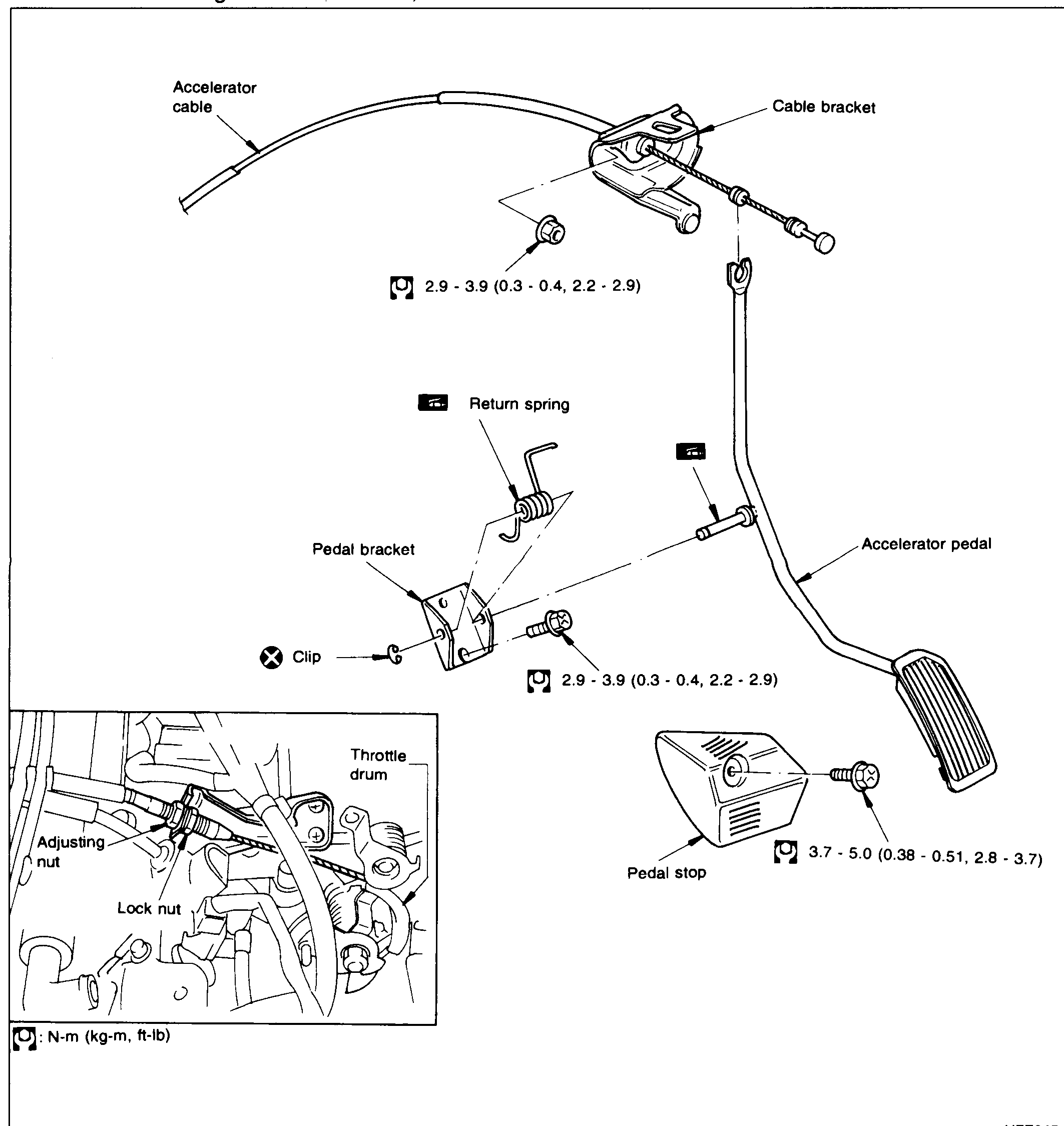

ACCELERATOR CONTROL SYSTEM
FE-3parts diagramNOTE
When removing accelerator cable, make a mark to indicate lock nut's initial position.
Check that throttle valve fully opens when accelerator pedal is fully depressed and that it returns to idle position when pedal is released.
Adjust accelerator cable
- 1Tighten "adjusting nut" until "throttle drum" starts to move.
UFE045 - 2From that position turn back "adjusting nut" 1.5 to 2 turns, and fasten it with a lock nut.
NOTE
Check accelerator control parts for improper contact with any adjacent parts.
CAUTION
When connecting accelerator cable, be careful not to twist or scratch the inner cable.
| Specification | Value |
|---|---|
| Cable bracket fastenerTightening torque | 2.9 - 3.9N·m |
| Pedal bracket fastenerTightening torque | 2.9 - 3.9N·m |
| Pedal stop fastenerTightening torque | 3.7 - 5.0N·m |
Cable bracket fastenerTightening torque
2.9 - 3.9N·m
Pedal bracket fastenerTightening torque
2.9 - 3.9N·m
Pedal stop fastenerTightening torque
3.7 - 5.0N·m
NOTE
Legend: torque values are in N·m (kg-m, ft-lb).
