REAR SUSPENSION — Stabilizer Bar

RA-9prose procedure

Removal and Installation

Stabilizer bar — removal and installation

  1. 1
    Remove stabilizer bar.

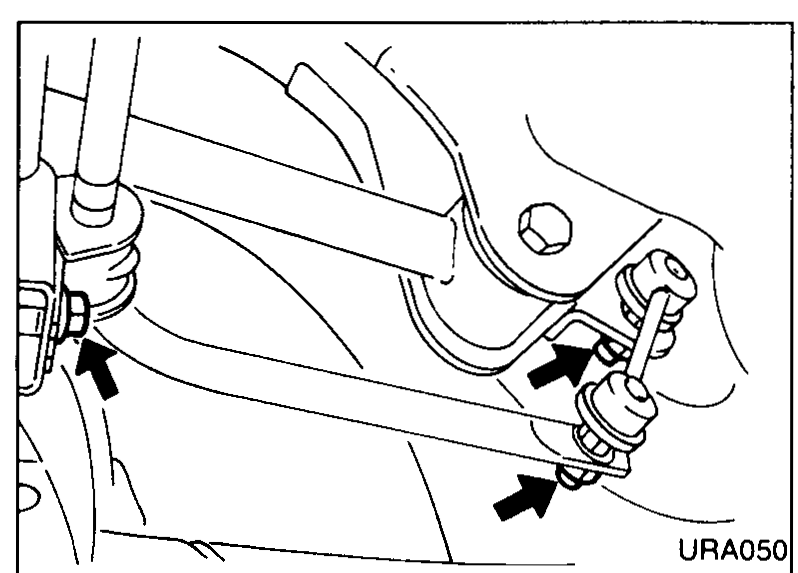

    Underside view of the stabilizer-bar mounting area on the rear axle. Two arrows point at the bushing clamp and the connecting-rod ball-joint nut to indicate the removal points.
    URA050
  2. 2
    When installing stabilizer bar, it must be positioned as shown.

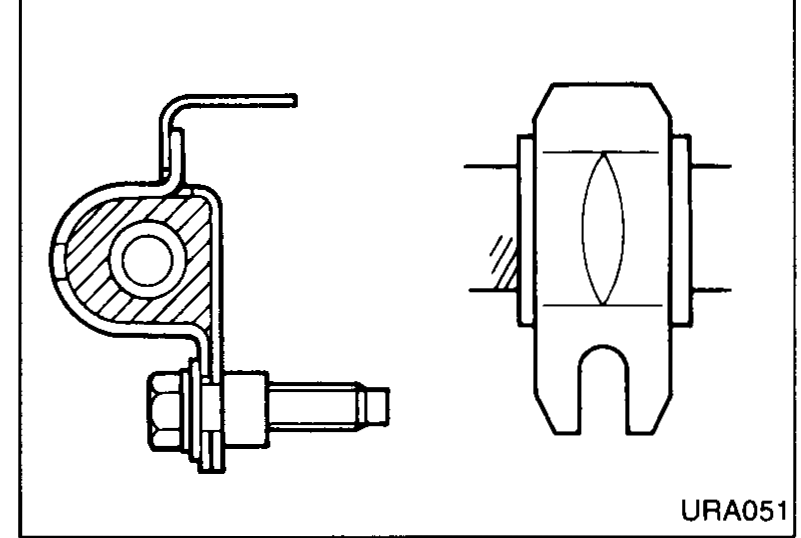

    Two-part schematic of the stabilizer bar mounting orientation. Left view: side-on cross-section showing the stabilizer-bar clamp with the ball-joint stud pointing downward. Right view: front-on cross-section of the mounting bush in its clamp.
    URA051
  3. 3
    Install stabilizer bar with ball joint socket properly placed.
    Compare to the O.K. vs N.G. illustration: socket must face the correct direction.

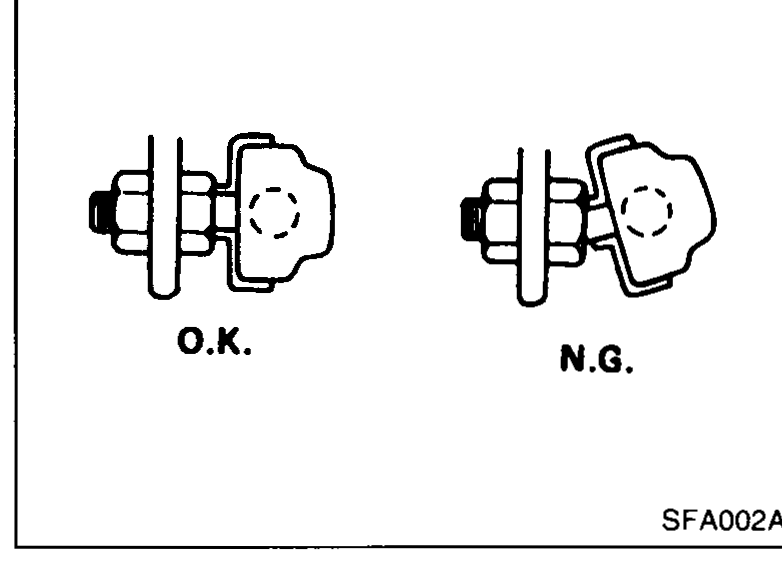

    Comparison of two stabilizer-bar ball-joint orientations. Left labelled 'O.K.' shows the ball-joint socket oriented correctly. Right labelled 'N.G.' shows the socket oriented incorrectly.
    SFA002A
